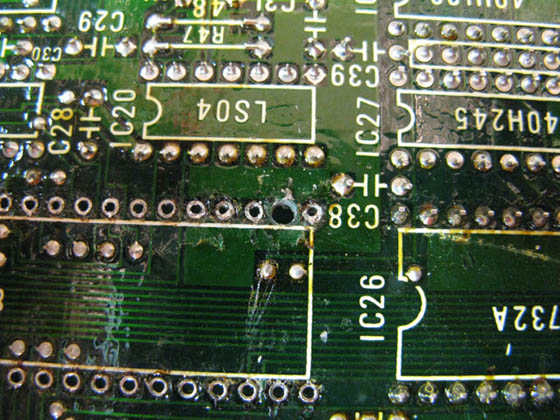

| Now the most risky task started. The clock line (former
connected to pin 18) must be connected to pin 19. Originally pin19 and
pin 20 are connected to ground - unfortunately with many many lines. So
I decided to drill the hole for pin 19 wider. I used a 2mm drill for it. |
