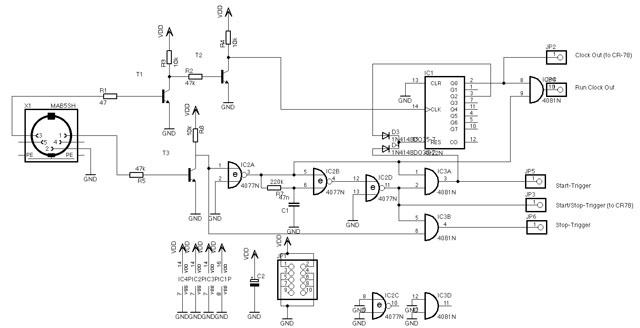

The schematics for the DIN-Sync Interface. For the CR78 only the outputs marked with "to CR-78" are required. The "Run Clock Out" is a clock output which provides clock only as long as the DIN-Sync is in "Run"-Mode (pin 1 = high).
