BOSS DR-55 - Schematics

This page is rough and dirty -> some folks from synth-diy mailling list asked for the schemoes.

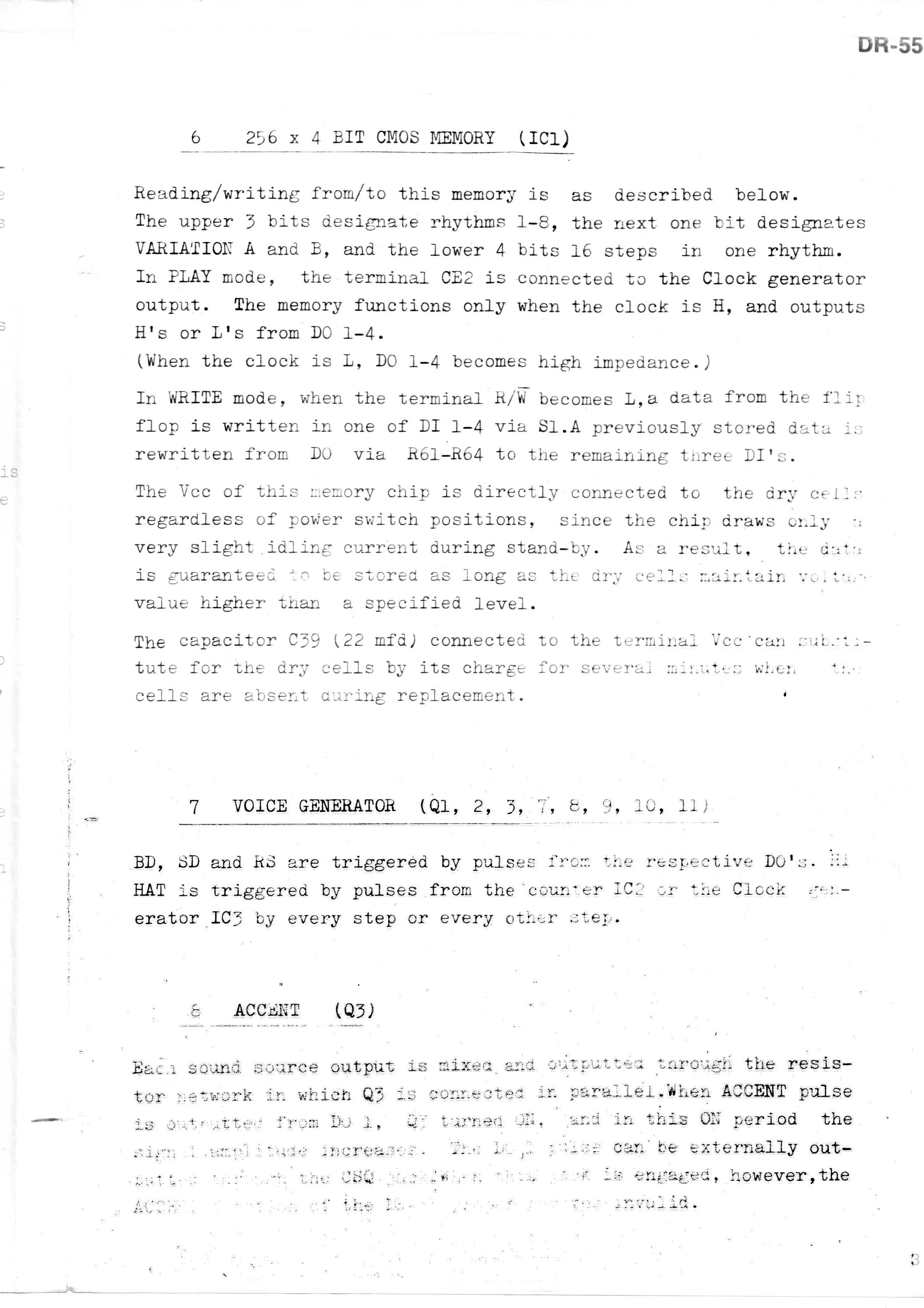

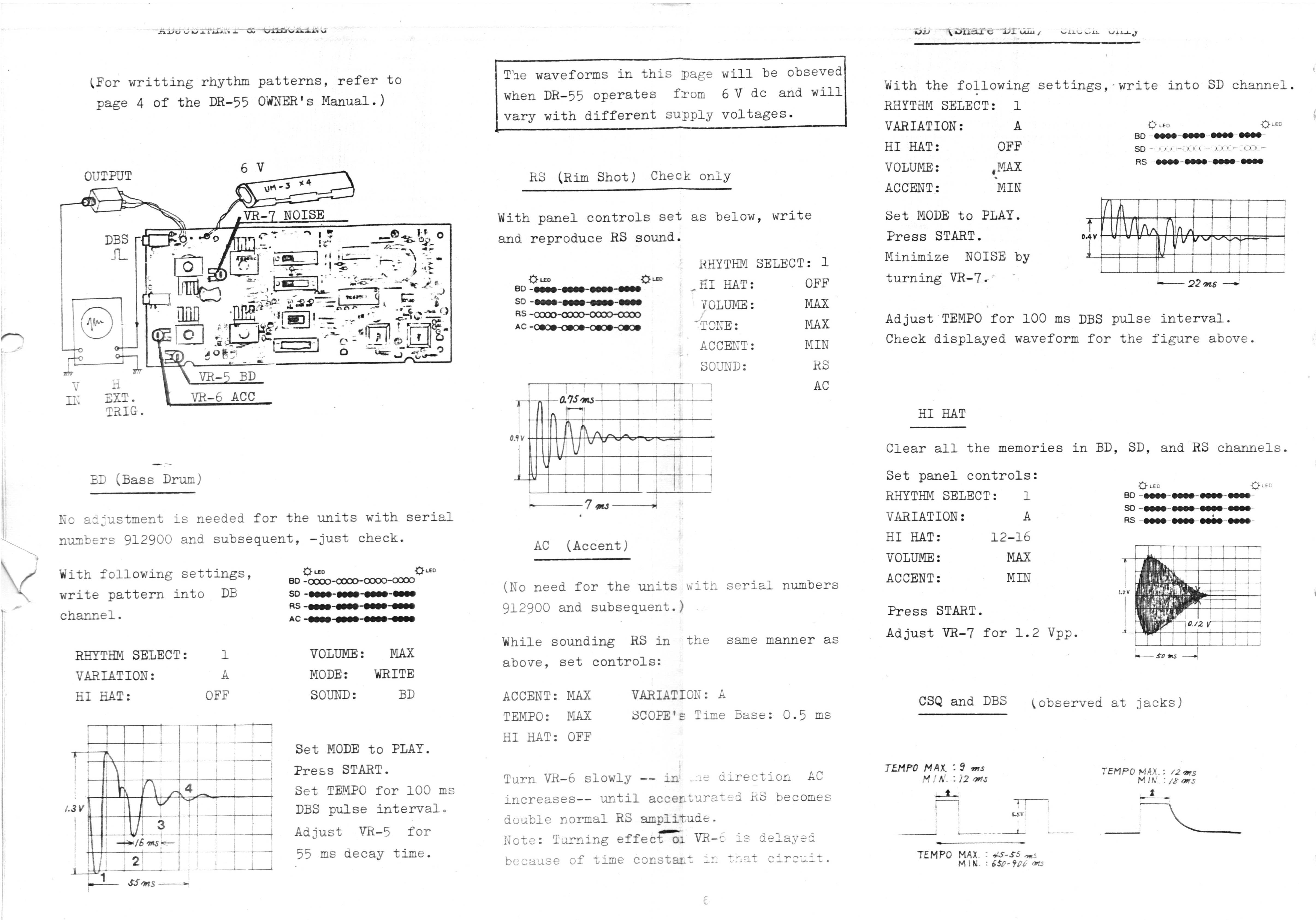

The originals of these scans are copies I got from a Roland technician back in the eighties. Please note, that I noted down some additions, to the scans. These are not the originals!

I scanned this with 300 dpi. The pages are Format DIN-A3 (nearly double lettersize).
