The Yamaha RM-2408 is a 24 channel inline-console with 8 subgroups. At the moment I did only a few modifications:

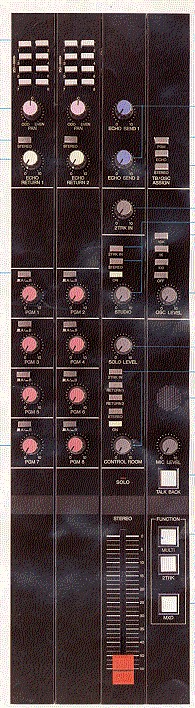

I scanned some pictures from the flyer:

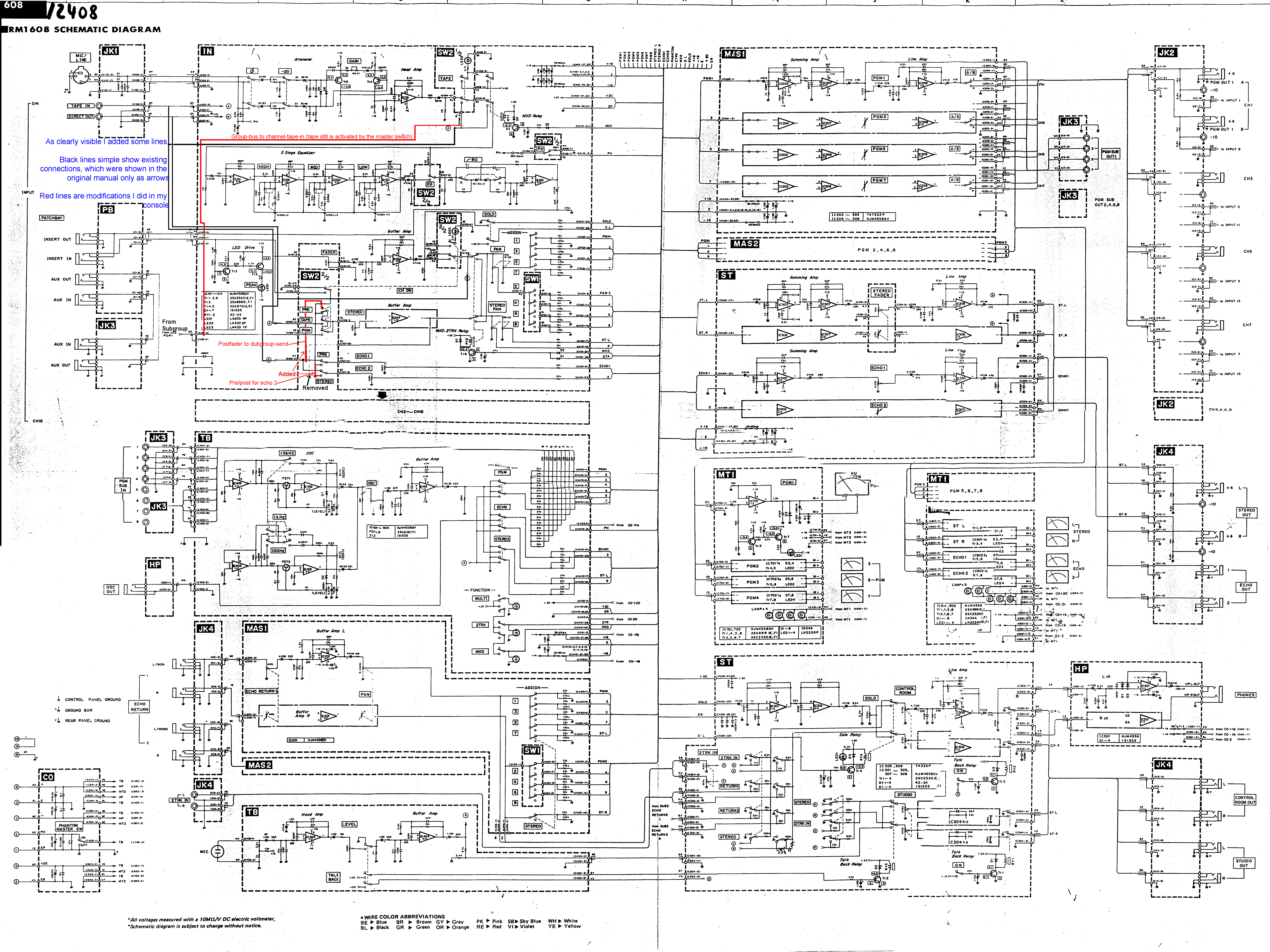

Here are the schematics. The schematic is one large paper, about three DIN-A4/lettersize pages wide and two DIN-A4/lettersize pages high. This is the full scan:

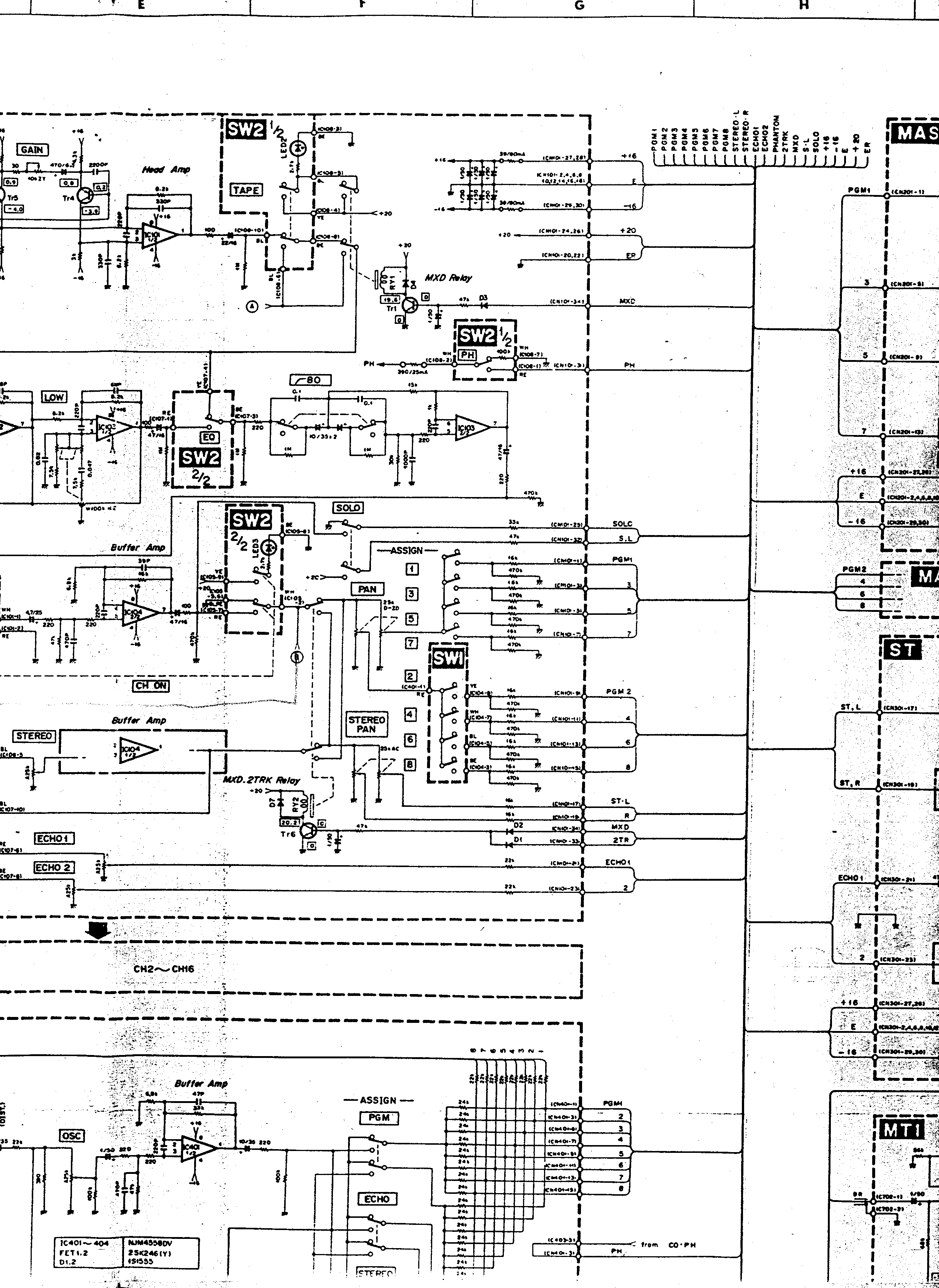

If you want to print out the schematics on a normal Lettersize/A4-printer, then the following version might be more helpful. I scanned it overlapping as two rows of four A4-scans. The first row (RM24A*.*) shows the channel and subgroups, the second row (RM24B*.*) shows the master section and monitor section. The power supply is on two separated pages.
- I removed the second ground/chassis connection of the channel modules, which is located under the fader. This reduces the humm in the desk (there are two connections per module, which causes a slight ground loop).
- I rewired the echo send switches, so they both are fed from the large fader and do a pre/post switching. This modification can be seen in the RM24A1.jpg at the 'SW2' at the lower two switches.
- I rewired the 'small fader' switching (buttons labeled 'pre', 'tape' and 'pgm'). If no button is pressed the small fader has the post-faded signal from the large fader. This modification can be seen in the RM24A1.jpg at the 'SW2' at the second, third and fourth switch (counted from upside down).
- I made a connection from the subgroup bus input at on each channel and wired it to the tape-return switch. The tape in still can be engaged by the "remix" function.
